PIR Interfacing with NodeMCU

Introduction

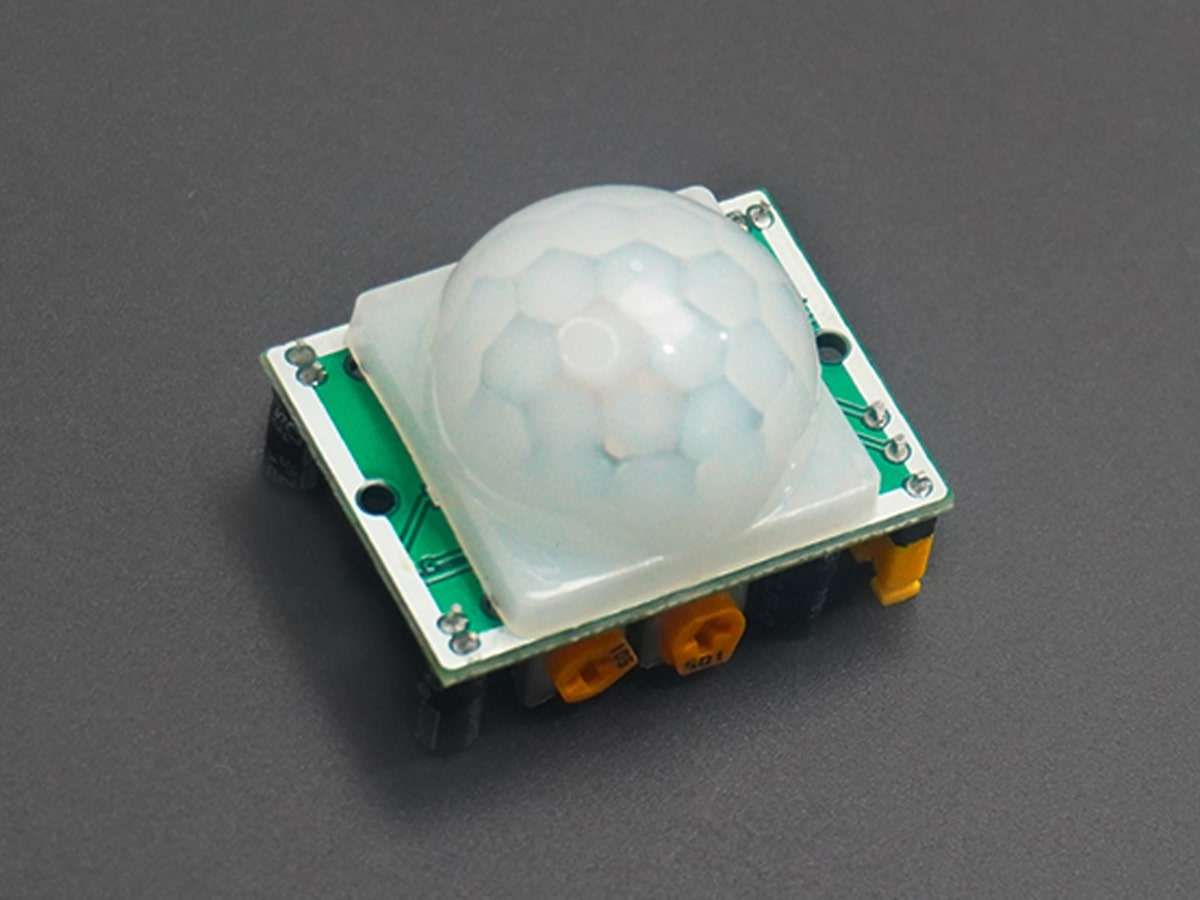

PIR Sensor

PIR sensor is used for detecting infrared heat radiations. This makes them useful in the detection of moving living objects that emit infrared heat radiations.

The output (in terms of voltage) of PIR sensor is high when it senses motion; whereas it is low when there is no motion (stationary object or no object).

PIR sensors are used in many applications like for room light control using human detection, human motion detection for security purpose at home, etc.

For more information on PIR sensor and how to use it, refer the topic PIR Sensor in the sensors and modules section.

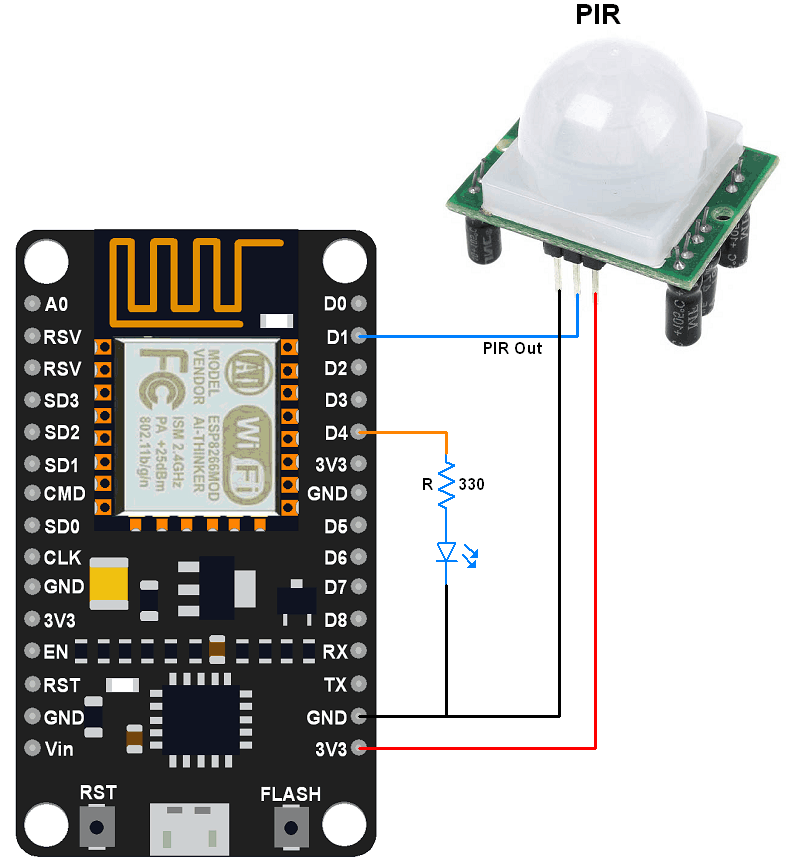

Interfacing Diagram

PIR Interface with NodeMCU

Example

Let’s interface PIR sensor with NodeMCU. When motion is detected, PIR output goes HIGH which will be read by NodeMCU. So, we will turn on LED when motion is detected by PIR sensor. LED is connected to D4 pin.

Here we are writing Arduino Sketch as well as Lua script for NodeMCU. To know more about NodeMCU development using Arduino sketch or Lua script refer Getting started with NodeMCU using Arduino IDE and Getting started with NodeMCU using ESPlorer IDE

Lua Script for PIR

PIRpin = 1
LEDpin = 4

gpio.mode(PIRpin, gpio.INPUT)
gpio.mode(LEDpin, gpio.OUTPUT)

while true do
   gpio.write(LEDpin, gpio.read(PIRpin))
   tmr.delay(10000)
end

Arduino Sketch for PIR

int LED = D4;
intPIR_Input = D1;

void setup(){
 pinMode(PIR_Input,INPUT);
 pinMode(LED,OUTPUT);
}

void loop() {
 digitalWrite(LED, digitalRead(PIR_Input));
 delay(10);
}

---

Supporting Files

Source Code

• NodeMCU PIR source codes Download
