Thermistor Interfacing with NodeMCU

Introduction

Thermistor

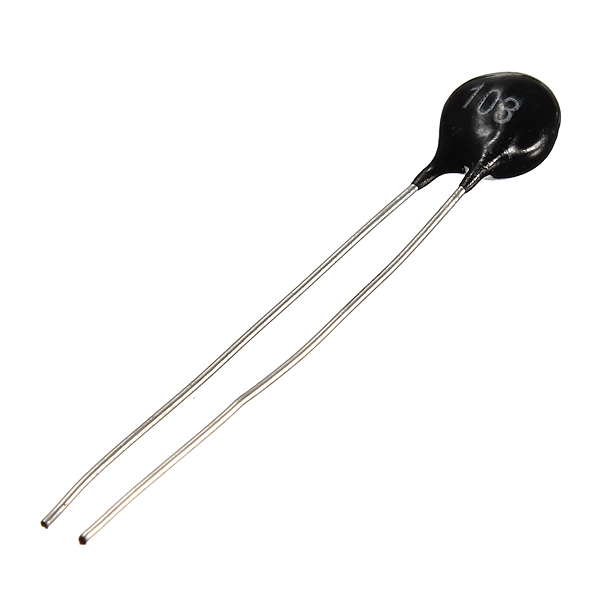

Thermistor is a variable resistance element; whose resistance varies with change in temperature. The change in resistance value is a measure of the temperature. Thermistors are classified as PTC (Positive Temperature Coefficient) or NTC (Negative Temperature Coefficient).

They can be used as current limiters, temperature sensors, overcurrent protectors etc. For more information about thermistor and how to use it, refer the topic NTC Thermistor in the sensors and modules section.

Interfacing Diagram

Interfacing Thermistor with NodeMCU

Example

Measuring temperature using thermistor.

Here, an NTC type thermistor of 10kΩ (thermistor resistance) is used. NTC of 10kΩ means that this thermistor has a resistance of 10kΩ at 25°C. Voltage across the 10kΩ resistor is given to the ADC of NodeMCU.

We can calculate the voltage across series 10kΩ resistor (R2 in above figure) as,

Vout = VCC * ADC_Value / ADC_Resolution

Where, Vout is the voltage measured by the ADC of NodeMCU

The temperature can be found out from thermistor resistance using the Steinhart-Hart equation.

Temperature(in kelvin) = 1 / (A + B[ln(Rth)] + C[ln(Rth)]^3)

where, A = 0.001129148,

B = 0.000234125,

C = 8.76741*10^-8 and

Rth is the thermistor resistance.

The thermistor resistance (Rth) can be found out using simple voltage divider network formula.

Rth + 10k = VCC * 10k / Vout

Where, Rth is the thermal resistance

NodeMCU ADC can be used to measure analog voltage across 10kΩ resistor. To know about ADC of NodeMCU refer NodeMCU ADC with ESPlorer IDE and NodeMCU ADC with Arduino IDE.

We can write codes for NodeMCU Dev Kit in either Lua Script or C/C++ language. We are using ESPlorer IDE for writing Lua scripts and Arduino IDE for writing code in C/C++. To know more refer Getting started with NodeMCU using ESPlorer IDE (which uses Lua scripting for NodeMCU) and Getting started with NodeMCU using Arduino IDE (which uses C language based Arduino sketches for NodeMCU).

Let’s write Lua script for NodeMCU to measure temperature using thermistor.

Lua Script for thermistor

VCC = 3.3   -- NodeMCU on board 3.3v vcc
R2 = 10000  -- 10k ohm series resistor
adc_resolution = 1023 -- 10-bit adc

-- thermistor equation parameters
A = 0.001129148
B = 0.000234125
C = 8.76741*10^-8

function ln(x)      --natural logarithm function for x>0 real values
    local y = (x-1)/(x+1)
    local sum = 1
    local val = 1
    if(x == nil) then
        return 0
    end
-- we are using limited iterations to acquire reliable accuracy.
-- here its upto 10000 and increased by 2
    for i = 3, 10000, 2 do
        val = val*(y*y)
        sum = sum + (val/i)
    end
    return 2*y*sum
end

while true do
    local Vout, Rth, temperature
    local adc_value = adc.read(0)

    Vout = (adc_value * VCC) / adc_resolution
    Rth = (VCC * R2 / Vout) - R2
    temperature = (1 / (A + (B * ln(Rth)) + (C * (ln(Rth))^3)))   -- Temperature in kelvin
    temperature = temperature - 273.15  -- Temperature in degree celsius
    print(string.format("Temperature = %0.3g °C",temperature))
    tmr.delay(100000)
end

ESPlorer Serial Output Window

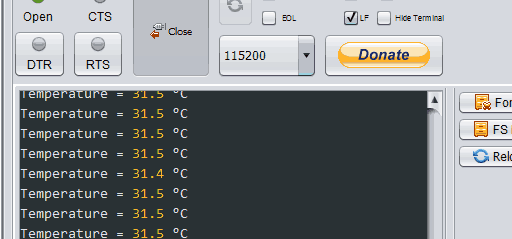

ESPlorer Serial monitor output window for temperature using thermistor

Now let’s write program of thermistor for NodeMCU using Arduino IDE

Arduino Sketch for thermistor

const double VCC = 3.3;             // NodeMCU on board 3.3v vcc
const double R2 = 10000;            // 10k ohm series resistor
const double adc_resolution = 1023; // 10-bit adc

const double A = 0.001129148;   // thermistor equation parameters
const double B = 0.000234125;
const double C = 0.0000000876741;

void setup() {
  Serial.begin(9600);  /* Define baud rate for serial communication */
}

void loop() {
  double Vout, Rth, temperature, adc_value;

  adc_value = analogRead(A0);
  Vout = (adc_value * VCC) / adc_resolution;
  Rth = (VCC * R2 / Vout) - R2;

/*  Steinhart-Hart Thermistor Equation:
 *  Temperature in Kelvin = 1 / (A + B[ln(R)] + C[ln(R)]^3)
 *  where A = 0.001129148, B = 0.000234125 and C = 8.76741*10^-8  */
  temperature = (1 / (A + (B * log(Rth)) + (C * pow((log(Rth)),3))));   // Temperature in kelvin

  temperature = temperature - 273.15;  // Temperature in degree celsius
  Serial.print("Temperature = ");
  Serial.print(temperature);
  Serial.println(" degree celsius");
  delay(500);
}

Arduino Serial Output Window

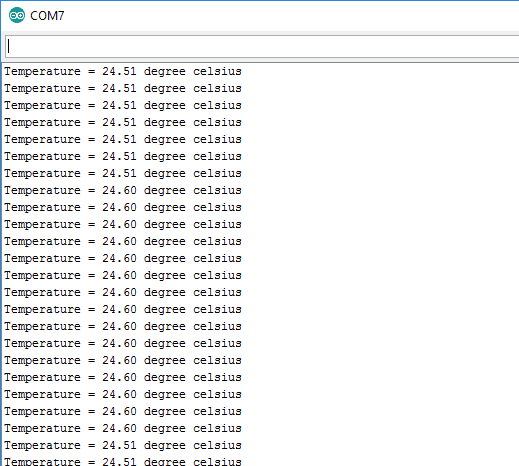

Arduino Serial monitor output window for temperature using thermistor

---

Supporting Files

Source Code

• NodeMCU Thermistor Source files Download
